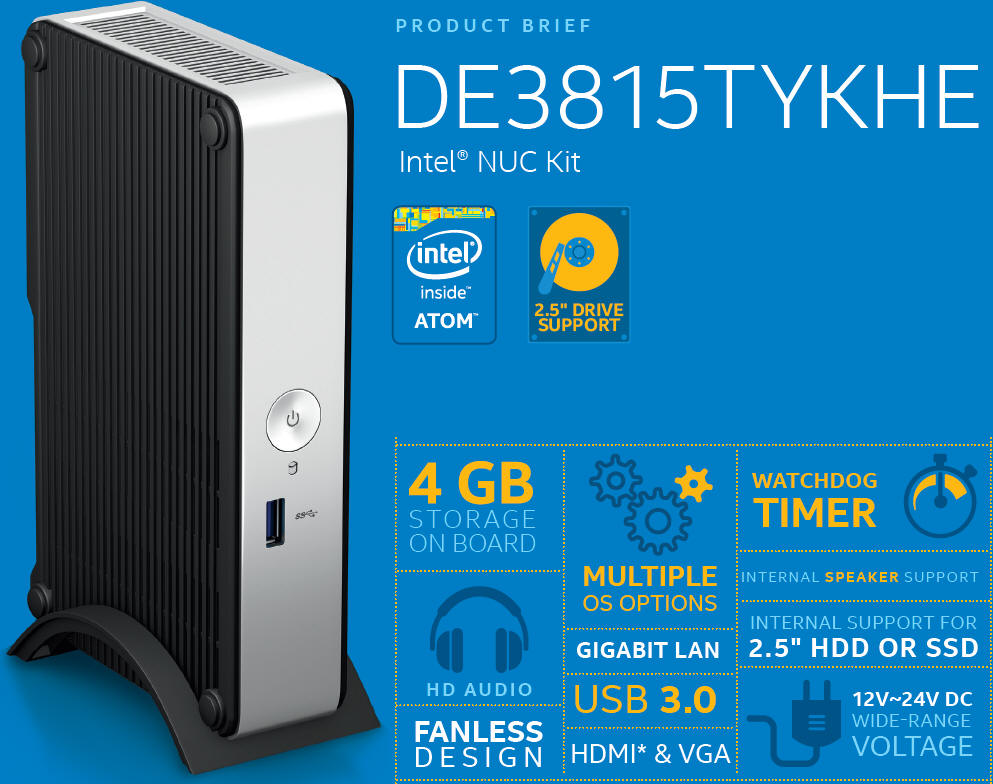

Intel NUC kit DE3815TYKHE Low Cost with 4 GB eMMC embedded storage

Enabling small system designs, Intel's Next Unit of Computing Kit DE3815TYBE offers performance for Embedded Devices and more.

Delivering ideal power usage, performance, and affordability, the Intel NUC Board DE3815TYBE drives light digital signage, POS, and kiosk solutions

The Intel NUC Kit DE3815TYKHE, built with an Intel Atomprocessor for intelligent systems, is a pint-sized powerhouse for value-conscious businesses and organizations. This low-cost, low-power solution introduces many firsts to the Intel NUC form-factor: fanless thermal solution for the ultimate silence and reliability, onboard flash storage for small-footprint software solutions, internal flat panel display connectivity for built-in screens, video graphics array (VGA) port for monitor compatibility in legacy installations, serial ports header for peripherals requiring the robustness of hardware handshaking, watchdog timer for resilient system availability, and also inter-integrated circuit (I2C) and pulse width modulation (PWM) signals for interfacing with sensors and other embedded devices enabling the Internet of Things. And with its three-year supply availability, the Intel NUC Kit DE3815TYKHE will be around to support long development and production ramp cycles.

With its vertical industrial design and support for Linux* and Windows* Embedded operating systems, this Intel NUC was designed as the essential building block to power the thin-client market. A fanless kit with flash storage built in, and USB3 and audio headset support, this Intel NUC fits right at home in schools, call centers, and other locations with a large installed base of VGA monitors.

Powered by the Intel® Atom™ processor E3815, the Intel NUC Kit DE3815TYKHE also provides an ideal combination of power consumption, performance, affordability, and software compatibility to drive light digital signage, point-of-sale, and kiosk solutions, amongst other usages. With 4 GB of Embedded MultiMediaCard (eMMC) storage built in, many embedded applications will benefit from a lower overall system-level BOM cost. Incidentally, high availability resilience can also be enabled for these and other unattended solutions via the built-in watchdog timer, providing priceless protection against costly and embarrassing downtimes. Last, but certainly not least, this Intel NUC provides a discrete Trusted Platform Module device onboard for hardware-based data encryption—a must-have for applications where confidential information is at stake. Embedded possibilities are endless with the Intel NUC Kit DE3815TYKHE—just add RAM!

Features and Configurations

Features and Configurations
Processor	Intel® Atom™ processor E3815 (1.46GHz single core, 512KB cache, 5W thermal design power (TDP))
Memory	DDR3L SO-DIMM 1.35V, 1333/1600 MHz (down clocked to 1066 MHz) , 8-GB maximum
Graphics	Intel® HD Graphics (up to 400 MHz) 1x HDMI* 1.4a 1x Embedded DisplayPort* (eDP) 1.3 (2-lane with backlight and adjustable voltage/timings) 1x VGA
Audio	Multi-channel digital audio via HDMI interface Back panel headphone/microphone jack
Peripheral connectivity	1x USB 3.0 connector on the front panel 2x USB 2.0 connectors on the back panel 3x internal USB 2.0 ports (2x5 + 1x5 headers)
Storage	4-GB eMMC storage device built in Internal support for 2.5-inch HDD or SSD (up to 9.5mm thickness)
Networking	10/100/1000Mbps Ethernet port Half-length PCIe* mini-card slot and wireless antennas pre-assembled (for wireless card support)
Enclosure	Metallic gray plastic ring with black sides Dimensions: 190mm x 116mm x 40mm
Power adapter	12V, 36W wall-mount AC-DC power adapter (12-19V DC back panel power connector) Multi-country plugs (IEC types A/C/G/I)
Additional features	Fanless design Discrete Trusted Platform Module (TPM 1.2) Watchdog timer (hardwired to board reset) Custom Solutions header (DMIC, AppLaunch GPIO, HDMI_CEC, SMBus, I2C[0:1], PWM[0:1] w/5V buffers, 1.8/3.3/5 Vstby power) 2x serial port headers (TXD/RXD/RTS/CTS, w/5V transceivers) 12-24V DC internal power header Compatible with Windows* Embedded 8 Standard (WES 8), WES 7, Linux* Vertical stand VESA mount bracket (75x75mm and 100x100mm compatible) Kensington lock support 3-year Product Life Cycle 3-year Advanced Warranty Replacement
Included in the box	Intel® NUC Board DE3815TYBE integrated in enclosure Vertical stand VESA mount bracket, with screws 12V, 36W wall-mount AC-DC power adapter with multi-country AC plugs (IEC types A/C/G/I) Intel Atom brand sticker Integration guide

The 4 GB eMMC embedded storage on the Intel® NUC Kit DE3815TYKHE and Intel® NUC Board DE3815TYBE can be used for small-footprint operating systems, as typically used for thin-client and light-embedded applications. Please check your OS minimum requirements before attempting to install an OS to this device.

:: Application

Embedded Windows 7 8 2012 clients
Industrial control systems
Fanless systems
Digital Signage
Media Center
Build Home Srever
Compact desktop or mobile computer
Embedded Single Board Computer systems
Thin clients

Hardware only	Part number	MOQ	Pricing
Intel Desktop NUC ATOM Kit	Intel NUC DE3815TYKHE Kit	5	INR 9500.00	USD $148.00
