NetComputer NC100 NC200 L300 NC400 Network PC Computer



Share Net Station net computer station commercial use

Introduction

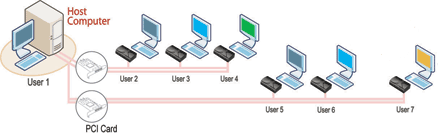

Each NetComputer NC300 kit enables you to add three users to an existing PC at a very low cost. With a second kit you can share a PC with up to seven users (six users connected through the NC300 kits and one user working directly on the host PC). Each NC300 kit includes a half-size PCI card and three access terminals. The terminals connect to the PCI card via a standard Cat 6 STP cable that can be up to 10 meters (33 feet) long. In addition to supplying the monitor, keyboard, mouse and audio signals to the terminal, the cable from the PCI card also supplies power eliminating the need for separate power adapters. If you require units that connect to the host PC over longer distances than 10 meters, consider the NetComputer L Series Ethernet-based access terminals.

Configuration

Nearly all applications on the host system can be shared simultaneously by all of the users working on the terminals including web browsers, instant messaging programs, e-mail applications, office productivity suites and even basic multi-media applications (this solution is not recommended for high-end 3D gaming or 3D design applications). Note that additional software licenses may be required by your application software providers (check your software license agreements to ensure you have the appropriate number of licenses).

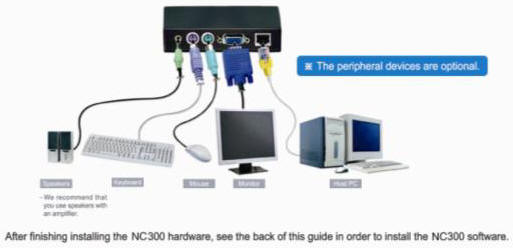

The NC300 kit is an ideal solution for schools, training rooms, and office applications. Each NC300 kit includes one PCI card, three access terminals, and the NC terminal services software. Note that the host PC, user peripherals and networking equipment are not included and must be purchased separately.

Package Content
  • 1 x PCI Card Adapter
  • 3 x Net Computer Access Terminal

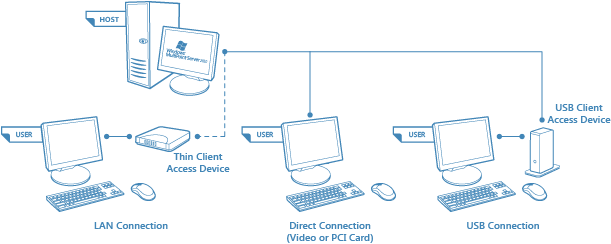

Windows Multipoint Server 2011

Guided tour on how Windows MultiPoint Server 2011 works

http://www.microsoft.com/windows/multipoint/RichMedia/eBook/index.html

Minimum recommended hardware for Windows Multipoint server

Application scenarioUp to 4
stations		5-6
stations		7-10
stations		11-14
stations		15-20
stations
Productivity

Office, Web browsing, line-of-business applications

CPU: 2C1



RAM: 2GB

CPU: 2C



RAM: 4GB

CPU: 4C1



RAM: 6GB

CPU: 4C



RAM: 8GB

CPU: 4C+MT or 6C1

RAM: 8 GB

Mixed

Productivity plus: Occasional video use by some users

CPU: 2C



RAM: 2GB

CPU: 2C



RAM: 4GB

CPU: 4C



RAM: 6GB

CPU: 4C+MT or 6C1

RAM: 8GB

CPU: 4C+MT or 6C

RAM: 8 GB

Video intensive2

Productivity plus: Frequent video use by all users

CPU: 2C



RAM: 2GB

CPU: 4C



RAM: 4GB

CPU: 4C+MT or 6C

RAM: 6GB

CPU: 4C+MT or 6C

RAM: 8GB

CPU: 4C+MT or 8C

RAM: 8 GB

Thin Client: RemoteFX3

USB video not recommended
